Computer vision

E3385


Image Size(inch) 1"
Focal Length(mm) 75
F NO. 2.8
Control Iris 1
ObjectDimension at M.O.D. 77.1mm x 57.7mm 1"
Field of View (H) 9.7°
Distortion 1/2" <0.3%
Distortion 1/2.5" <0.23%
Distortion 1/3" <0.2%
Back Focal Length (mm) 16.49(in air)
Flange Back Length (mm) 17.526
Mount C
Dimensions(Φ*L)(mm) Φ35*36.55

E3564A


Image Size(inch) 2/3"
Focal Length(mm) 5
F NO. 2.8
Control Iris Manual
Control Focus Manual
Field of View (H) 115°
Distortion 1/2" -6.20%
Distortion 1/2.5" -5.40%
Distortion 1/3" -4.20%
Back Focal Length (mm) 9.12(1.1 filter &0.7 C.G)
Flange Back Length (mm) 17.526(in air)
Mount C
Dimensions(Φ*L)(mm) Φ75*90.16

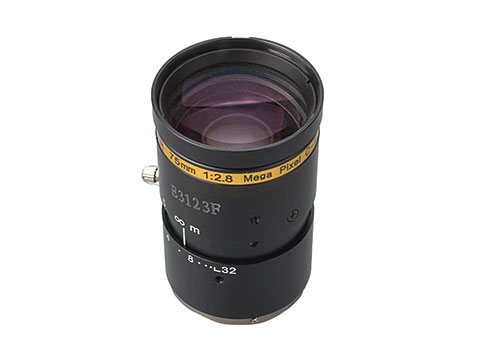

E3123


Image Size(inch) 1
Focal Length(mm) 75.0
HFOV (°) 6.7
Pixel Size(μm) 2.40

E3104


Image Size(inch) 1/1.8
Focal Length(mm) 4.0
HFOV (°) 103.0
Pixel Size(μm) 3.45

E3109


Image Size(inch) 1/1.8
Focal Length(mm) 8.0
HFOV (°) 46.0
Pixel Size(μm) 3.45

E3129


Image Size(inch) 1/1.8
Focal Length(mm) 6.0
HFOV (°) 60.1
Pixel Size(μm) 3.45

E3112


Image Size(inch) 2/3
Focal Length(mm) 12.0
HFOV (°) 39.0
Pixel Size(μm) 3.45

E3128


Image Size(inch) 2/3
Focal Length(mm) 16.0
HFOV (°) 29.7
Pixel Size(μm) 3.45

E3120


Image Size(inch) 2/3
Focal Length(mm) 25.0
HFOV (°) 18.9
Pixel Size(μm) 3.45

E3122


Image Size(inch) 2/3
Focal Length(mm) 50.0
HFOV (°) 9.7
Pixel Size(μm) 3.45

E3340


Image Size(inch) 2/3
Focal Length(mm) 8.0
HFOV (°) 56.0
Pixel Size(μm) 3.45

E3121


Image Size(inch) 2/3
Focal Length(mm) 35.0
HFOV (°) 14.2
Pixel Size(μm) 3.45

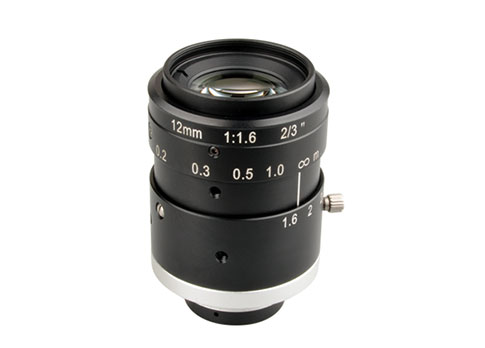

E3361


Image Size(inch) 2/3
Focal Length(mm) 12.0
HFOV (°) 39.3
Pixel Size(μm) 2.74

E3364


Image Size(inch) 2/3
Focal Length(mm) 16.0
HFOV (°) 29.9
Pixel Size(μm) 2.74

E3575


Image Size(inch) 2/3
Focal Length(mm) 25.0
HFOV (°) 18.7
Pixel Size(μm) 2.74

E3566


Image Size(inch) 2/3
Focal Length(mm) 35.0
HFOV (°) 13.7
Pixel Size(μm) 2.74

E3520


Image Size(inch) 1
Focal Length(mm) 36.4
HFOV (°) 20.0
Pixel Size(μm) 2.40

E3576


Image Size(inch) 2/3
Focal Length(mm) 50.0
HFOV (°) 9.2
Pixel Size(μm) 2.74

E3358


Image Size(inch) 1/1.8
Focal Length(mm) 8.0
HFOV (°) 55.2
Pixel Size(μm) 2.74

E3356


Image Size(inch) 1/1.8
Focal Length(mm) 6.0
HFOV (°) 60.0
Pixel Size(μm) 2.74

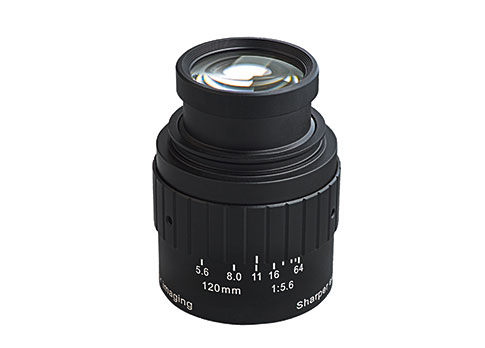

E3700


Image Size(mm) 90.0
Focal Length(mm) 120.0
Magnification -0.50
Aperture Ratio F5.6-F16
Resolution 16K5μ

E3653


Image Size(mm) 66.0
Focal Length(mm) 90.0
Magnification -0.09
Aperture Ratio F4.0-F16
Resolution 12K5μ

E3690


Image Size(mm) 60.0
Focal Length(mm) 38.0
Magnification -0.17
Aperture Ratio F5.6-F16
Resolution 8K7μ

E3652


Image Size(mm) 44.0
Focal Length(mm) 50.0
Magnification -0.22
Aperture Ratio F2.2-F22
Resolution 8K5μ

E3656


Image Size(mm) 43.2
Focal Length(mm) 41.5
Magnification -0.13
Aperture Ratio F2.8-F22
Resolution 8K5μ

E3681


Image Size(mm) 30.0
Focal Length(mm) 20.0
Magnification -0.04
Aperture Ratio F4.5-F16
Resolution 4K7μ

E3305


Image Size(inch) 1/7.5
Focal Length(mm) 1.7
HFOV (°) 61.5
Optical Distortion(%) -6.20%

E3253


Image Size(inch) 1/4
Focal Length(mm) 2.0
HFOV (°) 82.7
Optical Distortion(%) -4.30%

E3097


Image Size(inch) 1/3
Focal Length(mm) 3.5
HFOV (°) 68.0
Optical Distortion(%) -2.60%

E3096


Image Size(inch) 1/2.5
Focal Length(mm) 4.5
HFOV (°) 66.9
Optical Distortion(%) -1.70%

E3590


Image Size(inch) 1/2.5
Focal Length(mm) 3.5
HFOV (°) 78.0
Optical Distortion(%) -3.25%

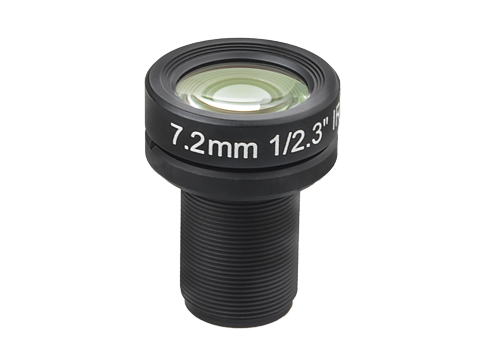

E3414


Image Size(inch) 1/2.3
Focal Length(mm) 7.2
HFOV (°) 47.3
Optical Distortion(%) -1.70%

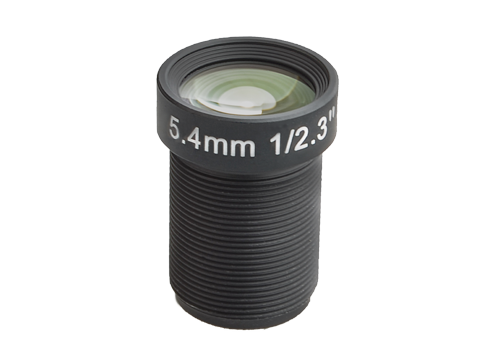

E3413


Image Size(inch) 1/2.3
Focal Length(mm) 5.4
HFOV (°) 60.2
Optical Distortion(%) -2.00%

E3463


Image Size(inch) 1/1.8
Focal Length(mm) 50.0
HFOV (°) 8.8
Optical Distortion(%) -0.10%

E3482


Image Size(inch) 1/1.8
Focal Length(mm) 35.0
HFOV (°) 12.6
Optical Distortion(%) -0.08%

E3137


Image Size(inch) 1/1.8
Focal Length(mm) 25.0
HFOV (°) 17.1
Optical Distortion(%) -4.00%

E3401


Image Size(inch) 1/1.8
Focal Length(mm) 16.3
HFOV (°) 26.8
Optical Distortion(%) -0.95%

E3562


Image Size(inch) 1/1.8
Focal Length(mm) 12.0
HFOV (°) 35.8
Optical Distortion(%) -2.20%

E3542


Image Size(inch) 1/1.8
Focal Length(mm) 7.7
HFOV (°) 54.2
Optical Distortion(%) -2.26%

E3388


Image Size(inch) 1/1.8
Focal Length(mm) 7.8
HFOV (°) 40.9
Optical Distortion(%) -2.20%

E3499


Image Size(inch) 1/1.8
Focal Length(mm) 5.8
HFOV (°) 62.6
Optical Distortion(%) -6.70%

E3317


Image Size(inch) 1/1.7
Focal Length(mm) 4.0
HFOV (°) 90.1
Optical Distortion(%) -18.20%

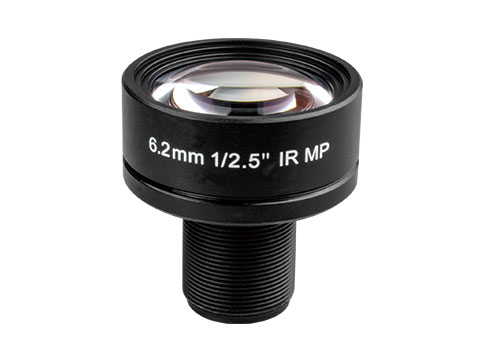

E3143


Image Size(inch) 1/2.5
Focal Length(mm) 6.2
HFOV (°) 48.0
Optical Distortion(%) -0.50%

E3297


Image Size(inch) 1/2.3
Focal Length(mm) 2.7
HFOV (°) 97.0
Optical Distortion(%) -6.60%

E3189


Image Size(inch) 1/2
Focal Length(mm) 3.5
HFOV (°) 84.0
Optical Distortion(%) -3.10%

E3343


Image Size(inch) 1/2
Focal Length(mm) 11.3
HFOV (°) 31.2
Aperture Ratio 1.4
Support Spectrum 800-1000nm
Pixel Size(μm) 10μm

E3397


Image Size(inch) 1/2
Focal Length(mm) 5.3
HFOV (°) 67.3
Aperture Ratio 1.2
Support Spectrum 800-1000nm
Pixel Size(μm) 10μm

E3325


Image Size(inch) 1/2
Focal Length(mm) 3.7
HFOV (°) 107.7
Aperture Ratio 1.3
Support Spectrum 800-1000nm
Pixel Size(μm) 10μm

E3488


Image Size(inch) 1/4.5
Focal Length(mm) 2.9
HFOV (°) 62.4
Aperture Ratio 1.2
Support Spectrum 800-1000nm
Pixel Size(μm) 5μm

E3469


Image Size(inch) 1/4.5
Focal Length(mm) 1.8
HFOV (°) 106.0
Aperture Ratio 1.2
Support Spectrum 800-1000nm
Pixel Size(μm) 5μm

E3319


Image Size(inch) 1/3
Focal Length(mm) 16.0
HFOV (°) 17.0
Optical Distortion(%) -0.63%

E3055


Image Size(inch) 1/3
Focal Length(mm) 12.0
HFOV (°) 23.0
Optical Distortion(%) -2.90%

E3230


Image Size(inch) 1/3
Focal Length(mm) 9.0
HFOV (°) 27.8
Optical Distortion(%) -0.64%

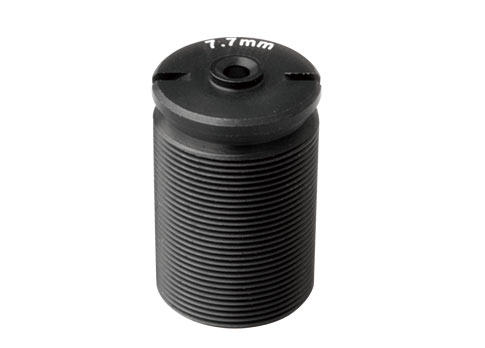

E3264


Image Size(inch) 1/3
Focal Length(mm) 7.7
HFOV (°) 35.6
Optical Distortion(%) -5.50%

E3054


Image Size(inch) 1/3
Focal Length(mm) 6.0
HFOV (°) 47.4
Optical Distortion(%) -16.20%

E3220


Image Size(inch) 1/2.5
Focal Length(mm) 7.5
HFOV (°) 41.0
Optical Distortion(%) -1.50%

E3149


Image Size(inch) 1/3
Focal Length(mm) 5.2
HFOV (°) 50.0
Optical Distortion(%) -2.60%

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8 ", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8 ", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8 ", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • The low distortion is less than -2%
  • 3-5,12 megapixel high resolution
  • Custom waterproof or reinforced versions
  • Precise aperture and focal length adjustment
  • A locking device for focus and aperture to prevent movement caused by shock or impact
  • Phase plane sizes are 1/1.8 ", 2/3 "and 1"

Applications

Machine vision field

Key Features

  • High cost-effectiveness
  • Color difference correction design
  • Applied to defect detection of lithium batteries, PCBs, LCDs, and semiconductors
  • High pixel, low distortion, supports 8K7y, 4K12y, 16K3.5u

Applications

Machine vision field

Key Features

  • High cost-effectiveness
  • Color difference correction design
  • Applied to defect detection of lithium batteries, PCBs, LCDs, and semiconductors
  • High pixel, low distortion, supports 8K7y, 4K12y, 16K3.5u

Applications

Machine vision field

Key Features

  • High cost-effectiveness
  • Color difference correction design
  • Applied to defect detection of lithium batteries, PCBs, LCDs, and semiconductors
  • High pixel, low distortion, supports 8K7y, 4K12y, 16K3.5u

Applications

Machine vision field

Key Features

  • High cost-effectiveness
  • Color difference correction design
  • Applied to defect detection of lithium batteries, PCBs, LCDs, and semiconductors
  • High pixel, low distortion, supports 8K7y, 4K12y, 16K3.5u

Applications

Machine vision field

Key Features

  • High cost-effectiveness
  • Color difference correction design
  • Applied to defect detection of lithium batteries, PCBs, LCDs, and semiconductors
  • High pixel, low distortion, supports 8K7y, 4K12y, 16K3.5u

Applications

Machine vision field

Key Features

  • High cost-effectiveness
  • Color difference correction design
  • Applied to defect detection of lithium batteries, PCBs, LCDs, and semiconductors
  • High pixel, low distortion, supports 8K7y, 4K12y, 16K3.5u

Applications

Machine vision field

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • Broad band confocal design suitable for both Visible and
  • NIR applications
  • Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • Broad band confocal design suitable for both Visible and
  • NIR applications
  • Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • Broad band confocal design suitable for both Visible and
  • NIR applications
  • Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • High definition, low distortion lens(<-0.65%)
  • High resolution support up to 5 Mega-pixel cameras
  • ·Broad band confocal design suitable for both Visible and
  • NIR applications
  • ·Compact design ideal for integration

Applications

Face/Eyes recognition
Barcode scanner
3D.Tracking
Sorting inspection applications

Key Features

  • Supports 1/6", 1/4.5", 1/4",1/3",1/2", 2/3" target surface TOF sensors
  • Angle coverage from 38 degrees narrow Angle to 149 degrees wide Angle
  • The NIR wide spectrum covers 800-1000 nm and supports common light sources at 850nm and 940nm
  • Large aperture, anti-infrared reflection, support high definition imaging or sensing
  • Custom transmit or receive optical modules for TOF or LiDAR systems

Applications

Machine vision field

Key Features

  • Supports 1/6", 1/4.5", 1/4",1/3",1/2", 2/3" target surface TOF sensors
  • Angle coverage from 38 degrees narrow Angle to 149 degrees wide Angle
  • The NIR wide spectrum covers 800-1000 nm and supports common light sources at 850nm and 940nm
  • Large aperture, anti-infrared reflection, support high definition imaging or sensing
  • Custom transmit or receive optical modules for TOF or LiDAR systems

Applications

Machine vision field

Key Features

  • Supports 1/6", 1/4.5", 1/4",1/3",1/2", 2/3" target surface TOF sensors
  • Angle coverage from 38 degrees narrow Angle to 149 degrees wide Angle
  • The NIR wide spectrum covers 800-1000 nm and supports common light sources at 850nm and 940nm
  • Large aperture, anti-infrared reflection, support high definition imaging or sensing
  • Custom transmit or receive optical modules for TOF or LiDAR systems

Applications

Machine vision field

Key Features

  • Supports 1/6", 1/4.5", 1/4",1/3",1/2", 2/3" target surface TOF sensors
  • Angle coverage from 38 degrees narrow Angle to 149 degrees wide Angle
  • The NIR wide spectrum covers 800-1000 nm and supports common light sources at 850nm and 940nm
  • Large aperture, anti-infrared reflection, support high definition imaging or sensing
  • Custom transmit or receive optical modules for TOF or LiDAR systems

Applications

Machine vision field

Key Features

  • Supports 1/6", 1/4.5", 1/4",1/3",1/2", 2/3" target surface TOF sensors
  • Angle coverage from 38 degrees narrow Angle to 149 degrees wide Angle
  • The NIR wide spectrum covers 800-1000 nm and supports common light sources at 850nm and 940nm
  • Large aperture, anti-infrared reflection, support high definition imaging or sensing
  • Custom transmit or receive optical modules for TOF or LiDAR systems

Applications

Machine vision field

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner
3D. Tracking
Sorting inspection applications
Robot sensing

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner
3D. Tracking
Sorting inspection applications
Robot sensing

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner
3D. Tracking
Sorting inspection applications
Robot sensing

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner
3D. Tracking
Sorting inspection applications
Robot sensing

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner
3D. Tracking
Sorting inspection applications
Robot sensing

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner
3D. Tracking
Sorting inspection applications
Robot sensing

Key Features

  • High definition, low distortion lens(<-2.6%)
  • High resolution support up to 5 Mega-pixel cameras,designed for1/4-1/3 format sensors.
  • 850nm confocus design suitable for both Visible and NIR applications without refocus
  • Compact design for integration

Applications

Face/Eyes recognition
Barcode scanner/3D. Tracking
Sorting inspection applications
Robot sensing

Customized service and technical support

As an innovative optical solution provider and focused megapixel camera manufacturer,
We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution.

Author Information
Data Process...
