Automotives Lens

E3513


Lens structure 3G3P
Image Size(inch) 1/2.7"
Focal Length 6.9mm
Focal Length 2.6mm
VFOV 69.4°
HFOV 128.6°
DFOV 153.4°
F# F1.7
TTL 17.34mm

E3467


Lens structure 6-5(1ASG)+1Filter
Image Size(inch) 1/1.55"
Focal Length 6.25mm
Focal Length 2.28mm
VFOV 97.7°
HFOV 120.5°
DFOV 157.7°
F# F2.1
TTL 15mm

E663


Image Size(inch) 1/3.55"
Max image 4mm
Focal Length(mm) 0.95mm
HFOV(°) 195°
Match sensor OX01F10

E7393


Image Size(inch) 1/4"
Max image 4.834mm
Focal Length(mm) 0.95±5%mm
HFOV(°) 196.3±3°(3.864mm)
Match sensor SC120AT

E3517


Image Size(inch) 1/2.7"
Max image /
Focal Length(mm) 6.9mm
HFOV(°) 144°
Match sensor /

E7657


Image Size(inch) 1/2.9"
Max image 6.5mm
Focal Length(mm) 5.2mm
HFOV(°) 55°
Match sensor OV2311/OV2311

E7407


Image Size(inch) 1/3.2"
Max image 6.1mm
Focal Length(mm) 5.3mm±5%
HFOV(°) 50.7°±2°
Match sensor

E7586


Image Size(inch) 1/2.9"
Max image 6.18mm
Focal Length(mm) 5.3mm±5%
HFOV(°) 50.7°±2°
Match sensor OV2311

E7496


Image Size(inch) 1/4"
Max image 4.613mm
Focal Length(mm) 3.56mm
HFOV(°) 57.5°
Match sensor CCD/CMOS

E7583


Image Size(inch) 1/4"
Max image 4.53mm
Focal Length(mm) 4.5mm
HFOV(°) 50°@3.84mm
Match sensor OV9284

E7570


Image Size(inch) 1/3"
Max image 6.17mm
Focal Length(mm) 3.77mm
HFOV(°) 87.6°
Match sensor OV2778

E7543


Image Size(inch) 1/1.7"
Max image 10.29mm
Focal Length(mm) 3.1mm
HFOV(°) 176.4°@8.64mm
Match sensor CCD/CMOS

E7609


Image Size(inch) 1/1.7"
Max image 9.65mm
Focal Length(mm) 3.92mm
HFOV(°) 121°
Match sensor OX08B40

E7601


Image Size(inch) 1/2.7"
Max image 7.25mm
Focal Length(mm) 10.8mm
HFOV(°) 30°
Match sensor ISX021/OX03C10

E7502


Image Size(inch) 1/2.5"
Max image 6.922mm
Focal Length(mm) 11.9mm±5%
HFOV(°) 27.5°±3°
Match sensor CCD/CMOS

E7503


Image Size(inch) 1/2.5"
Max image 7.2mm
Focal Length(mm) 6.2mm±5%
HFOV(°) 56°±3°
Match sensor

E7511


Image Size(inch) 1/2.7"
Max image 6.61mm
Focal Length(mm) 3.46mm±5%
HFOV(°) 100°±3°
Match sensor IMX390

E7489


Image Size(inch) 1/3"
Max image 4.8mm
Focal Length(mm) 2.86mm
HFOV(°) 79°
Match sensor ISX020

E7558


Image Size(inch) 1/2.7"
Max image 7.2mm
Focal Length(mm) 7.5mm
HFOV(°) 44.7
Match sensor

E3336B


Image Size(inch) 1/1.8"
Max image /
Focal Length(mm) 3.1
HFOV(°) 151°
Match sensor

E869


Image Size(inch) 1/2.5"
Max image 7.3mm
Focal Length(mm) 2.62mm
HFOV(°) 124°
Match sensor VD1940/
RGB-IR/COB

E3510


Image Size(inch) 1/2.8"
Max image 5.6mm
Focal Length(mm) 1.93mm
HFOV(°) 185°
Match sensor

E3483


Image Size(inch) 1/3"
Max image 6.18mm
Focal Length(mm) 2.3mm
HFOV(°) 125.4°
Match sensor

E7549


Image Size(inch) 1/4"
Max image 4.64mm
Focal Length(mm) 1.54mm
HFOV(°) 144
Match sensor BF3149IM

E3467


Image Size(inch) 1/1.55"
Max image 6.25mm
Focal Length(mm) 2.28mm
HFOV(°) 120.5°
Match sensor OV2312

E3288C


Image Size(inch) 1/2.9"
Max image 5.6mm
Focal Length(mm) 1.96mm
HFOV(°) 180°
Match sensor

E7699


Image Size(inch) 1/2.44"
Max image 7.5mm
Focal Length(mm) 4.27mm
HFOV(°) 80°
Match sensor

E7698


Image Size(inch) 1/2.6"
Max image 7mm
Focal Length(mm) 5.4mm
HFOV(°) 62°
Match sensor OX03C10

E7558


Image Size(inch) 1/2.5"
Max image 6.826mm
Focal Length(mm) 7.5mm
HFOV(°) 45°
Match sensor

E7552


Image Size(inch) 1/2.7"
Max image 6.92mm
Focal Length(mm) 2.88mm
HFOV(°)
Match sensor

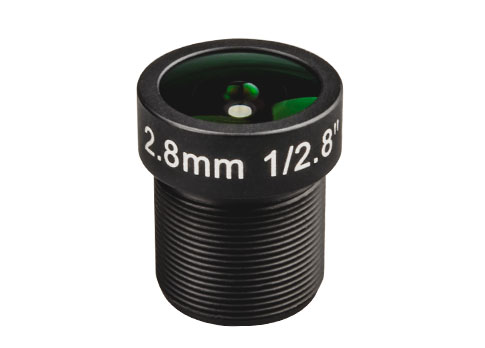

E3292B


Image Size(inch) 1/2.8″
Focal Length(mm) 2.8
HFOV(°) 122°
Match sensor

E7693


Image Size(inch) 1/2.8"
Max image 6.5mm
Focal Length(mm) 2.95mm
HFOV(°) 123°
Match sensor SC2331AT

E3513


Image Size(inch) 1/2.7"
Max image 6.9mm
Focal Length(mm) 2.6mm
HFOV(°) 128.6°±5%
Match sensor IMX415

E3517


Image Size(inch) 1/2.7"
Max image 4.5mm
Focal Length(mm) 1.27mm
HFOV(°) 185°
Match sensor CCD/CMOS

E3488


Image Size(inch) 1/4.5"
Max image 4mm
Focal Length(mm) 2.88mm
HFOV(°) 62.5°
Match sensor MLX75026

E3444


Image Size(inch) 1/4"
Max image 4mm
Focal Length(mm) 1.8mm
HFOV(°) 105°
Match sensor IRS2877C

E3343


Image Size(inch) 1/2"
Max image 8mm
Focal Length(mm) 11.3mm
HFOV(°) 31±3°
Match sensor

E3397


Image Size(inch) 1/2"
Max image 8.0mm
Focal Length(mm) 5.3mm±5%
HFOV(°) 65.7±3°@6.4mm
Match sensor

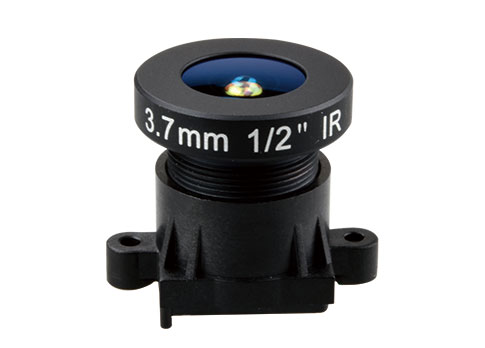

E3325


Image Size(inch) 1/2"
Max image 8.0mm
Focal Length(mm) 3.7mm
HFOV(°) 107.1°±3°@6.4mm
Match sensor

E7664A


Image Size(inch) 1/1.8
Max image 9.2mm
Focal Length(mm) 5.47mm
HFOV(°) 88.°(7.68mm)
Match sensor SC2210

E7495


Image Size(inch) 1/1.55"
Max image 9.3mm
Focal Length(mm) 28.79mm
HFOV(°) 16°(8mm)
Match sensor

E3273A


Image Size(inch) 1/3"
Max image 6.46mm
Focal Length(mm) 2.7mm
HFOV(°) 123.6º
Match sensor OS04C10

Key Features

  • Big Light F#1.7
  • Low-cost design
  • Can be equipped with 5MP high resolution

Applications

Traffic recorder

Key Features

  • IP69K
  • Small size
  • Large image surface 5MP resolution

Applications

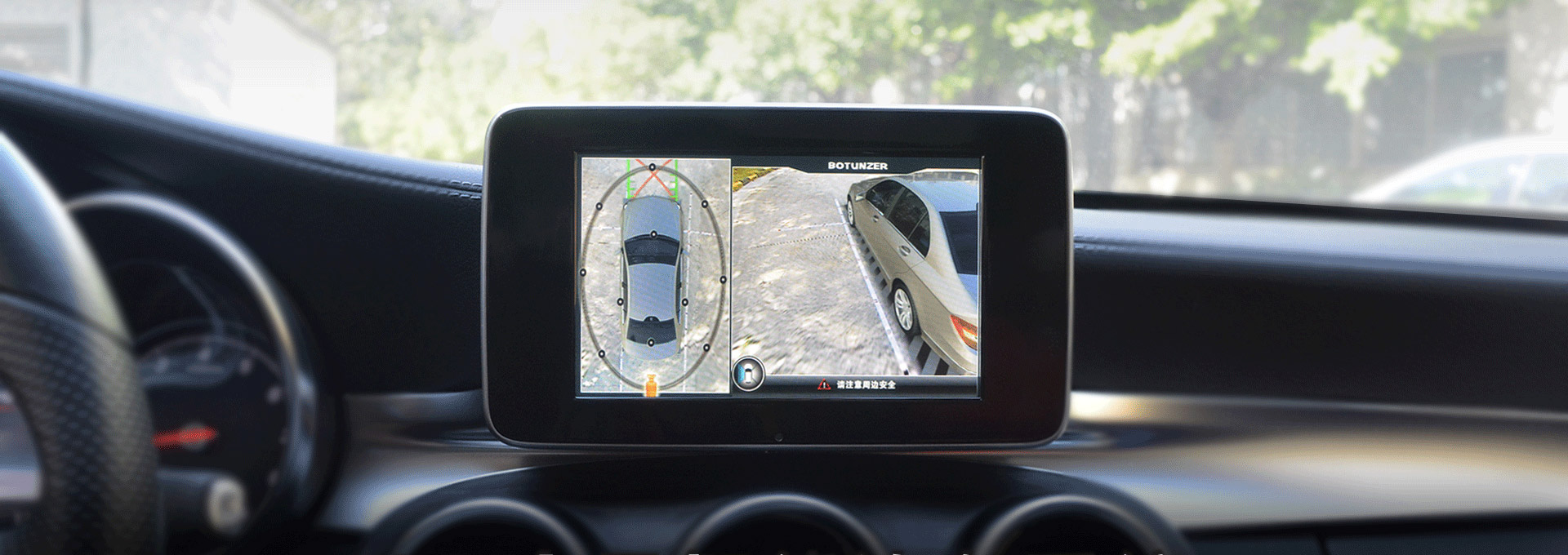

Look around the field

Key Features

Applications

Key Features

Applications

Key Features

  • Big Light F#1.7
  • Low-cost design
  • Can be equipped with 5MP high resolution

Applications

Traffic recorder

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

  • Mount option: CS / M12x0.5
  • High resolution supporting 2M-4K sensor
  • Compact design for mini dome and bullet cameras
  • IR-correction for day & night surveillance

Applications

Security/Surveillance

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

  • All-glass lens
  • Low-cost design
  • Small image surface 1MP resolution

Applications

Monitoring the rear and rear seats of the OMS

Key Features

  • IP69K
  • Small size
  • Large image surface 5MP resolution

Applications

Look around the field

Key Features

  • Super-wide angel with FOV up to 180° for panoramic surveillance
  • Sharp image quality for 5 mega pixels cameras
  • IR confocus for day and night surveillance
  • Super short TTL 11.88mm for doorbell application

Applications

AR/VR
Smart home
Sporty camera
Doorbell

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

  • Excellent image quality from center to edge
  • IR-corrected for Day/Night application
  • TV Distortion<-22.6%
  • Minimum focus shift, good for RGBIR sensor
  • Compatible for 1/2.8″,1/2.9″,1/3″ sensor format

Applications

Security IR Dome /Bullet
Sport camera
Baby Camera / Q-bit Camera
Doorbell / Drone

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

  • Supports 1/6", 1/4.5", 1/4",1/3",1/2", 2/3" target surface TOF sensors
  • Angle coverage from 38 degrees narrow Angle to 149 degrees wide Angle
  • The NIR wide spectrum covers 800-1000 nm and supports common light sources at 850nm and 940nm
  • Large aperture, anti-infrared reflection, support high definition imaging or sensing
  • Custom transmit or receive optical modules for TOF or LiDAR systems

Applications

Machine vision field

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

Applications

Key Features

  • Super wide angel: DFOV with 180° broadened view
  • Sharp image quality from center to edge
  • IR-Corrected for Day /Night application
  • Compact size with short TTL(14.86)
  • Compatible for 1/2.7″ or any smaller sensor format

Applications

Security / Surveillance
Automotive

Customized service and technical support

As an innovative optical solution provider and focused megapixel camera manufacturer,
We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution.
